Name: 0.003mm Ultra Fine Gold Plated Tungsten Wire High Precision for Medical Micro Electrode and Minimally Invasive Devices
Brand: SICHUAN WINNER SPECIAL ELECTRONIC MATERIALS CO., LTD.
SKU: TW011
Price: 999 USD
Availability: InStock

집 > 상품 > 금으로 접힌 텅프스텐 와이어 >

0.003mm Ultra Fine Gold Plated Tungsten Wire High Precision for Medical Micro Electrode and Minimally Invasive Devices

ultra fine gold plated tungsten wire

high precision medical micro electrode wire

gold plated tungsten wire for minimally invasive devices

브랜드 이름:

WINNER

인증:

ISO9100

모델 번호:

TW011

문의하기

조회를 요청하다

제품 상세정보

코팅 두께:

0.0003mm

재료:

텅스텐

와이어 직경:

0.02mm/0.03mm/0.04mm/0.05mm/0.06mm/0.07mm/0.1mm/0.2mm

길이:

1000/2000미터

녹는점:

3410 °C

비등점:

5660°C

밀도:

19.3 g/cm3

전기 저항력:

4.9μΩ-cm

강조하다:

ultra fine gold plated tungsten wire

high precision medical micro electrode wire

gold plated tungsten wire for minimally invasive devices

지불과 운송 용어

최소 주문 수량

1PC

가격

999

포장 세부 사항

롤, 중성 포장 또는 OEM 로고와 함께

배달 시간

5-8 영업일

지불 조건

L/C, 서부 동맹, T/T

공급 능력

달 당 100000의 목록

지금 접촉하세요

제품 설명

0.003mm Ultra Fine Gold Plated Tungsten Wire High Precision for Medical Micro Electrode

Super thin 0.003mm gold plated tungsten wire with uniform coating, high precision and stable conductivity, specially made for medical micro electrode and minimally invasive device parts.

Product Specifications

Material	Tungsten
Purity	Wu≥ 99.99%
Gold-plated thickness	0.3um
Wire diameter	0.02mm/0.03mm/0.04mm/0.05mm/0.06mm/0.07mm/0.1mm/0.2mm
Length	1000/2000 meter (cut from roll)

Gold Plated Tungsten Wire Properties (Theoretical)

Compound Formula	W
Molecular Weight	183.84
Appearance	Metallic wire
Melting Point	3410 °C
Boiling Point	5660 °C
Density	19.3 g/cm³ (25 °C)
Solubility in H₂O	N/A
Electrical Resistivity	4.9 μΩ-cm, (20 °C)
Exact Mass	183.951 g/mol
Monoisotopic Mass	183.951 g/mol

Key Features

Shiny golden surface condition - brighter than black or white tungsten wire
Exceptional high temperature resistance and high melting point
Low coefficient of thermal expansion
Superior corrosion resistance compared to ordinary tungsten wire

Applications

Electrode in photocopiers, replacing corrosion-resistant tungsten wire and tungsten aluminum wire
Ideal corrosion-resistant electron emission material
Applications in high-energy physics, meteorology, and other scientific research fields

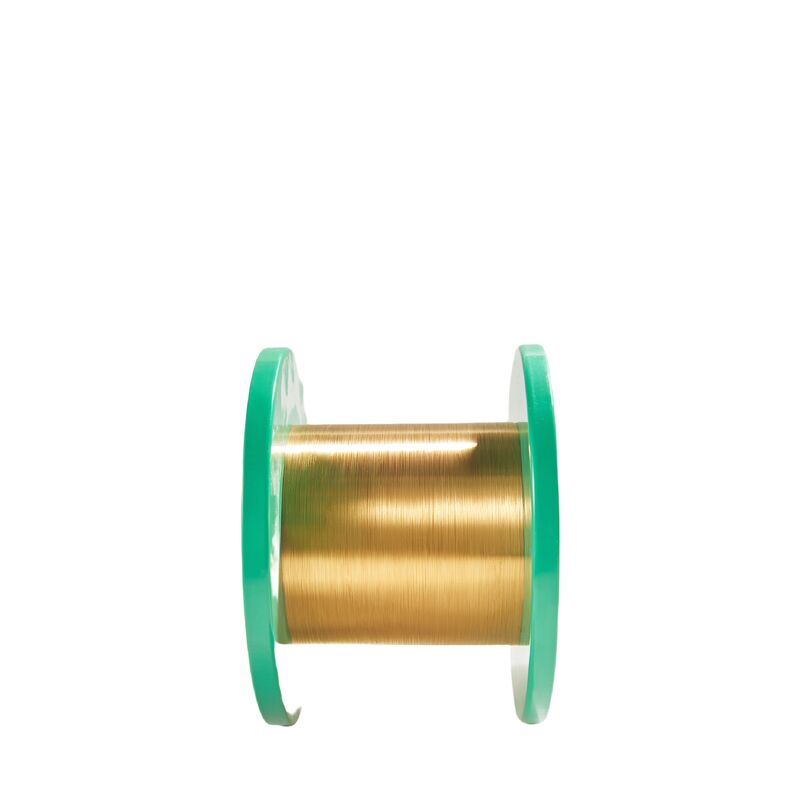

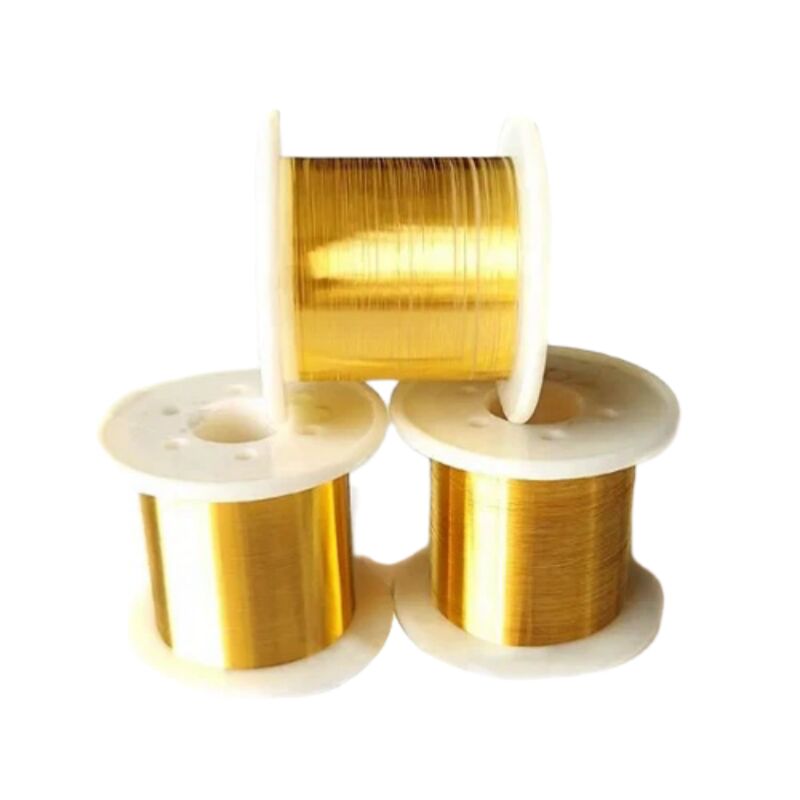

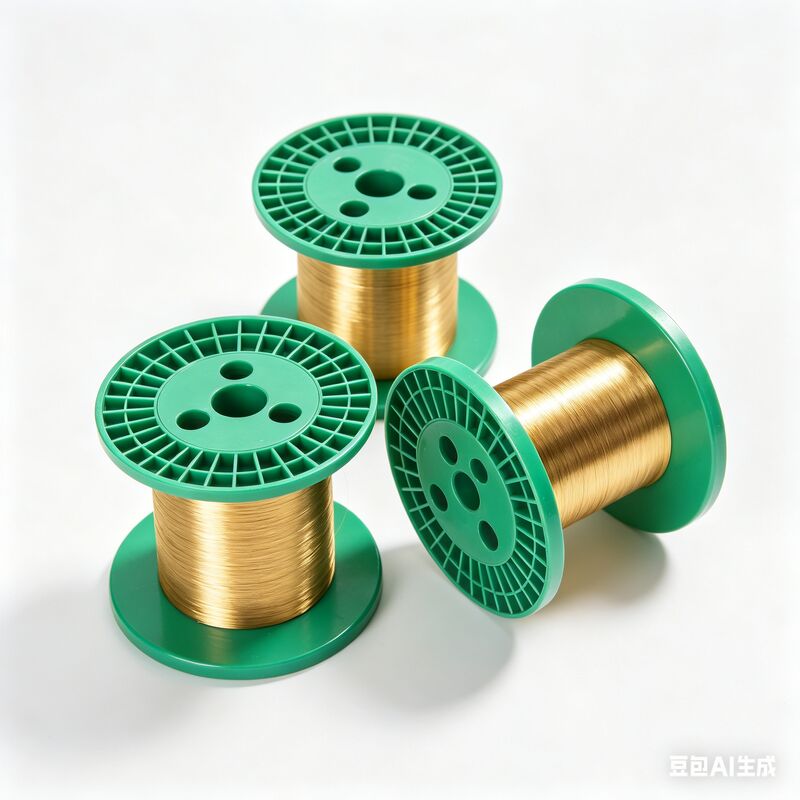

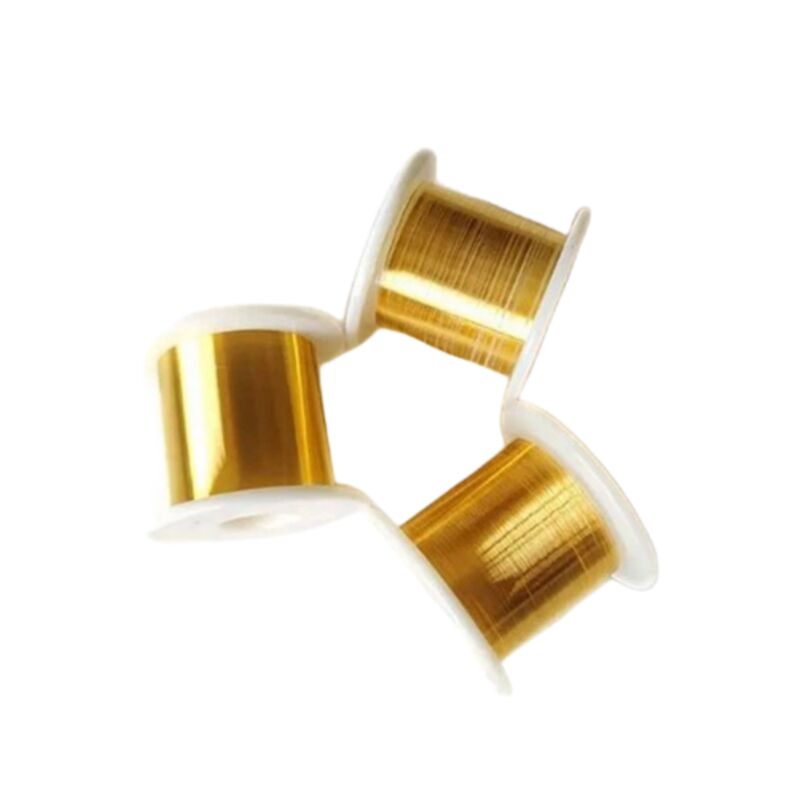

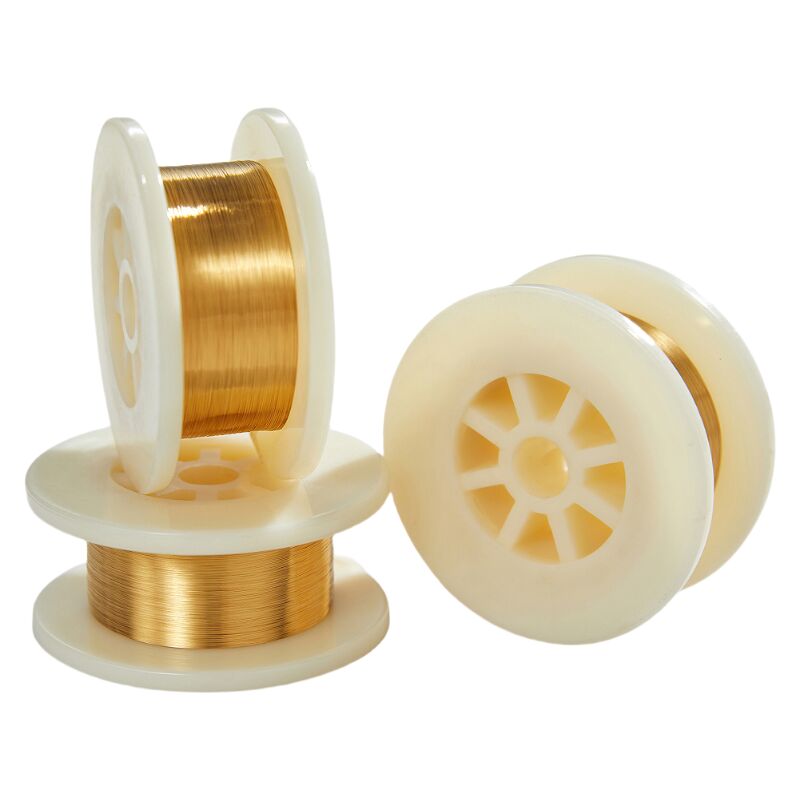

Product Images
