Name: Gold Plated Spring Test Probe with 2A Current Rating and Custom Sizes for Semiconductor Testing
Brand: SICHUAN WINNER SPECIAL ELECTRONIC MATERIALS CO., LTD.
Price: 999 USD
Availability: InStock

집 > 상품 > 스프링 테스트 프로브 >

Gold Plated Spring Test Probe with 2A Current Rating and Custom Sizes for Semiconductor Testing

Gold Plated Spring Test Probe

2A Current Rating Test Probe

Custom Sizes Semiconductor Test Pin

원래 장소:

중국

브랜드 이름:

WINNER

인증:

ISO9100

문의하기

조회를 요청하다

제품 상세정보

제품명:

스프링 테스트 프로브

통:

PB, 골드팔티드

하단 플런저:

BeCu/SK4, 금도금

TOP 플런저:

SK4(Be Cu)/금도금

봄:

SWPB(SUS)/금도금

유효성:

사용 가능한 맞춤형 크기

코팅:

금도금

현재 등급:

접촉 저항:

최대 100mΩ

대역폭:

-0.44dB @ 19.6GHz

인덕턴스:

1.36nH

용량:

1.76pF

전체 스트로크:

1.8mm

정격 뇌졸중:

1.8mm

전단력:

40그램@1.8mm

기계적 수명 초과:

200k

강조하다:

Gold Plated Spring Test Probe

2A Current Rating Test Probe

Custom Sizes Semiconductor Test Pin

지불과 운송 용어

최소 주문 수량

3000pcs

가격

999

포장 세부 사항

중성 포장 또는 OEM 로고와 함께

배달 시간

5-8 영업일

지불 조건

L/C, 서부 동맹, T/T

공급 능력

달 당 100000의 목록

Gold Plated Spring Test Probe with 2A Current Rating and Custom Sizes for Precision Semiconductor Testing

최고의 가격을 얻으십시오

Gold Plated Spring Test Probe with 2A Current Rating and Custom Sizes for Semiconductor Testing

최고의 가격을 얻으십시오

High Quality Switch Contact Pin Test Probe YF DE1-038BF32-01C0

최고의 가격을 얻으십시오

금 도금 고내구성 스프링 테스트 프로브

최고의 가격을 얻으십시오

문의하기

지금 접촉하세요

제품 설명

High Quality Switch Contact Pin Test Probe YF DE1-048DB81-01C0

High Efficiency BGA Testing Probes

Precision spring-loaded semiconductor test pins designed for reliable performance in demanding testing applications.

Key Product Features

High Conductivity Gold Plating: Gold-plated plunger and barrel ensure low contact resistance and stable signal transmission
Multiple Tip Styles: Available in B tip (60° cone), U tip, D tip, and fully customized geometries
Durable Spring Structure: Stainless steel spring (SUS material) provides stable working stroke and reliable contact force
Custom Manufacturing: OEM/ODM accepted with fast delivery from our factory

Product Images

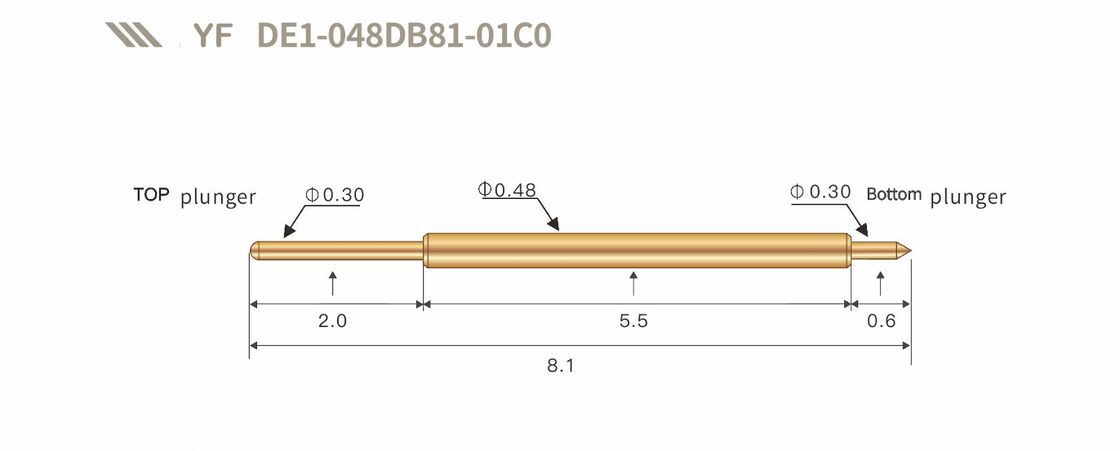

Detailed Component Illustration

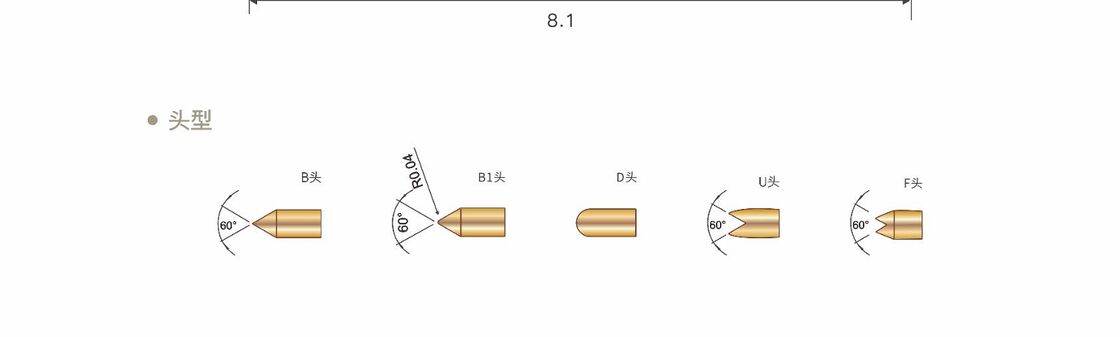

Comparison of different test probe tip types and configurations

Customization Options

SICHUAN WINNER SPECIAL ELECTRONIC MATERIALS CO., LTD. offers comprehensive customization for our brass barrel stainless steel spring test probes:

Custom diameters to match your specific requirements
Custom plating thicknesses for optimal conductivity and durability
Custom mechanical specifications tailored to your application

All products include material traceability documentation and certificate of analysis for quality assurance. Contact us to request samples or a quotation for your specific application requirements.

Manufacturing Process

Our probe manufacturing facility

Quality control inspection

Packaged probes ready for shipment
