Name: High Conductivity Durable Brass Barrel Spring Test Probe for Precision Testing in ICT/FCT Applications
Brand: SICHUAN WINNER SPECIAL ELECTRONIC MATERIALS CO., LTD.
Price: 999 USD
Availability: InStock

집 > 상품 > 스프링 테스트 프로브 >

High Conductivity Durable Brass Barrel Spring Test Probe for Precision Testing in ICT/FCT Applications

High Conductivity Spring Test Probe

Durable Brass Barrel Test Probe

Precision Testing ICT Probe

원래 장소:

중국

브랜드 이름:

WINNER

인증:

ISO9100

문의하기

조회를 요청하다

High Conductivity Durable Brass Barrel Spring Test Probe for Precision Testing in ICT/FCT Applications

제품 상세정보

제품명:

표준 크기 테스트 프로브

플런저:

BeCu/SK4, 금도금

통:

청동, 금색

봄:

SWP, Au on Ni 팔레트

유효성:

사용 가능한 맞춤형 크기

코팅:

금도금

MOQ:

3000pcs

용기:

놋쇠로 만든 금은 도금처리했습니다

현재 등급:

0.5AMPS

접촉 저항:

최대 5천만hms

전체 스트로크:

1.50 밀리미터

정격 뇌졸중:

1.00mm

전단력:

1.0/2.0/3.0N

CEM1:

0.5mm

FR4:

0.5mm

기준:

-40C-+80C

특별한 디자인"C":

-100℃-+200℃

강조하다:

High Conductivity Spring Test Probe

Durable Brass Barrel Test Probe

Precision Testing ICT Probe

지불과 운송 용어

최소 주문 수량

3000pcs

가격

999

포장 세부 사항

중성 포장 또는 OEM 로고와 함께

배달 시간

5-8 영업일

지불 조건

L/C, 서부 동맹, T/T

공급 능력

달 당 100000의 목록

High Conductivity Durable Brass Barrel Spring Test Probe for Precision Testing in ICT/FCT Applications

최고의 가격을 얻으십시오

China Supplier ICT test probe P048

최고의 가격을 얻으십시오

Gold Plated Brass Barrel Spring Test Probe with 0.5amps Current Rating and 50mΩ Max Contact Resistance for In-Circuit-Test (ICT)

최고의 가격을 얻으십시오

Gold Plated Brass Barrel Spring Test Probe with 1.50mm Full Stroke and 50mΩ Max Contact Resistance for ICT Testing

최고의 가격을 얻으십시오

문의하기

지금 접촉하세요

제품 설명

Spring Test Probe For ICT/FCT - Model P035

Customized Brass Barrel Stainless Steel Spring Test Probe P038 for In-Circuit-Test (ICT) applications, designed for reliable electrical contact and durability in testing environments.

Production Specifications

Product Images

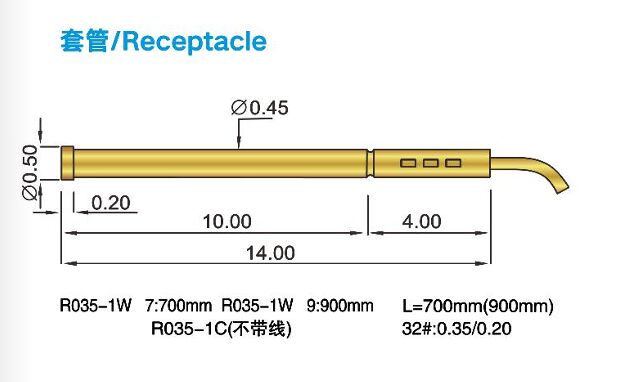

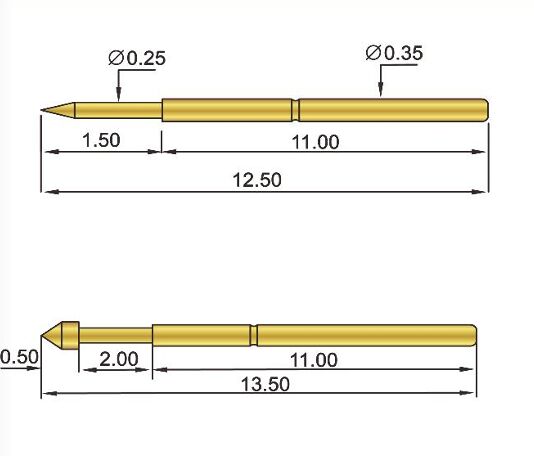

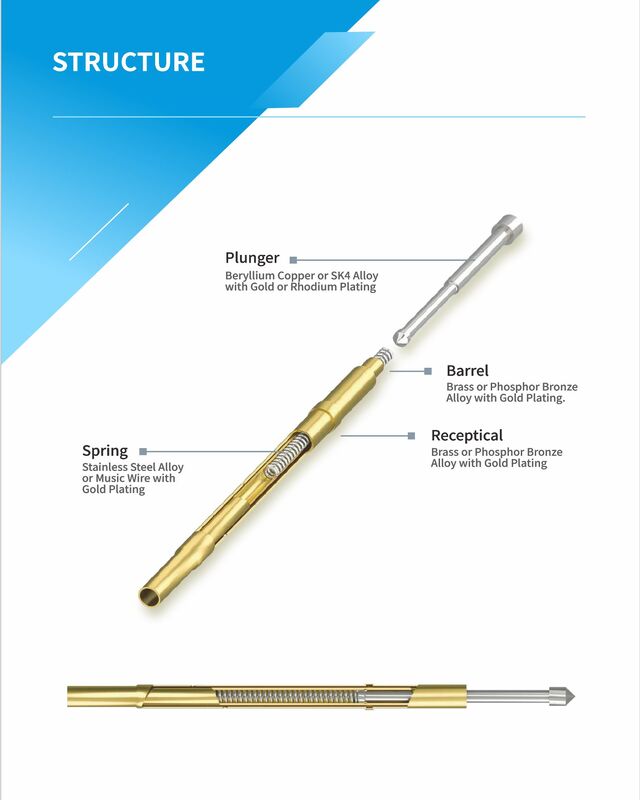

Detailed Component Illustration

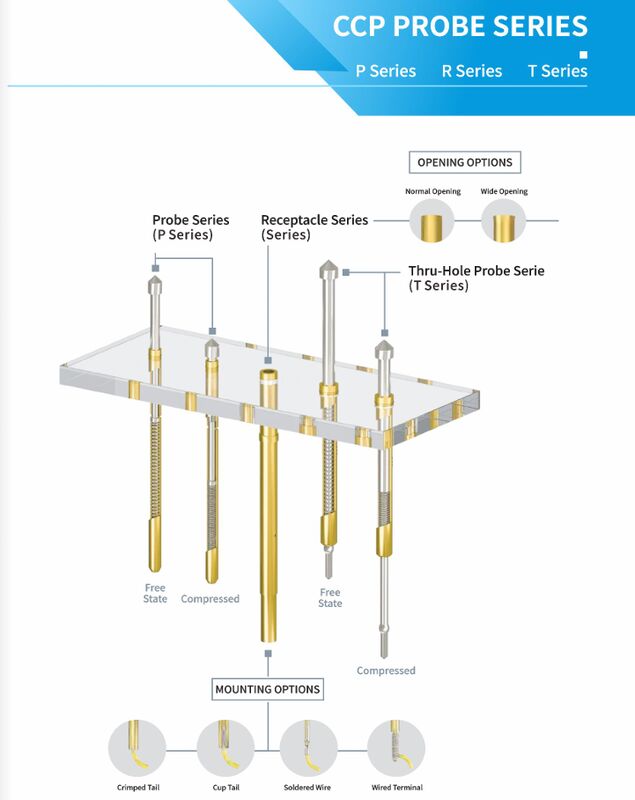

Comparison of different test probe tip types and configurations

Customization Options

At SICHUAN WINNER SPECIAL ELECTRONIC MATERIALS CO., LTD., we offer comprehensive customization for our brass barrel stainless steel spring test probes:

Custom diameters to match your specific requirements
Custom plating thicknesses for optimal conductivity and durability
Custom mechanical specifications tailored to your application

All products include material traceability documentation and certificate of analysis for quality assurance.

Manufacturing Process

Our probe manufacturing facility

Quality control inspection

Packaged probes ready for shipment
