Name: Gold Plated Brass Barrel Spring Test Probe with 0.5amps Current Rating and 50 Millionhms Max Contact Resistance
Brand: SICHUAN WINNER SPECIAL ELECTRONIC MATERIALS CO., LTD.
Price: 999 USD
Availability: InStock

집 > 상품 > 스프링 테스트 프로브 >

Gold Plated Brass Barrel Spring Test Probe with 0.5amps Current Rating and 50 Millionhms Max Contact Resistance

Gold Plated Spring Test Probe

Brass Barrel Pogo Pin

0.5amps Current Rating ICT Test Probe

원래 장소:

중국

브랜드 이름:

WINNER

인증:

ISO9100

문의하기

조회를 요청하다

제품 상세정보

제품명:

표준 크기 테스트 프로브

플런저:

BeCu/SK4, 금도금

통:

청동, 금색

봄:

SWP, Au on Ni 팔레트

유효성:

사용 가능한 맞춤형 크기

코팅:

금도금

MOQ:

3000pcs

용기:

놋쇠로 만든 금은 도금처리했습니다

현재 등급:

0.5AMPS

접촉 저항:

최대 5천만hms

전체 스트로크:

1.50 밀리미터

정격 뇌졸중:

1.00mm

전단력:

1.0/2.0/3.0N

CEM1:

0.40mm(.0.67)

FR4:

0.40mm(.0.69)

기준:

-40C-+80C

특별한 디자인"C":

-100℃-+200℃

강조하다:

Gold Plated Spring Test Probe

Brass Barrel Pogo Pin

0.5amps Current Rating ICT Test Probe

지불과 운송 용어

최소 주문 수량

3000pcs

가격

999

포장 세부 사항

중성 포장 또는 OEM 로고와 함께

배달 시간

5-8 영업일

지불 조건

L/C, 서부 동맹, T/T

공급 능력

달 당 100000의 목록

Gold Plated Brass Barrel Spring Test Probe with 1.50mm Full Stroke and 50mΩ Max Contact Resistance for ICT Testing

최고의 가격을 얻으십시오

Gold Plated Brass Barrel Spring Test Probe with 0.5amps Current Rating and 50 Millionhms Max Contact Resistance

최고의 가격을 얻으십시오

Brass Barrel Stainless Steel Spring Test Probe with 1.0/2.0/3.0N Spring Force for ICT Applications

최고의 가격을 얻으십시오

CHINA Supply YF-100 Brass Material Spring Contact Probe Pin

최고의 가격을 얻으십시오

문의하기

지금 접촉하세요

제품 설명

Spring Contact Probe Spring Test Probe P075

Product Description

Customized Brass Barrel Stainless Steel Spring Test Probe P075 for In-Circuit-Test (ICT)

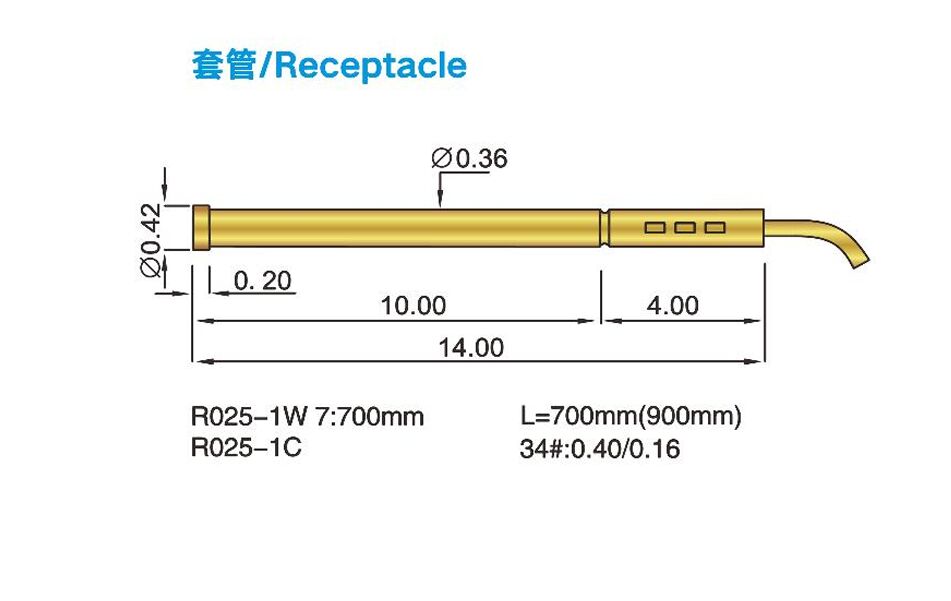

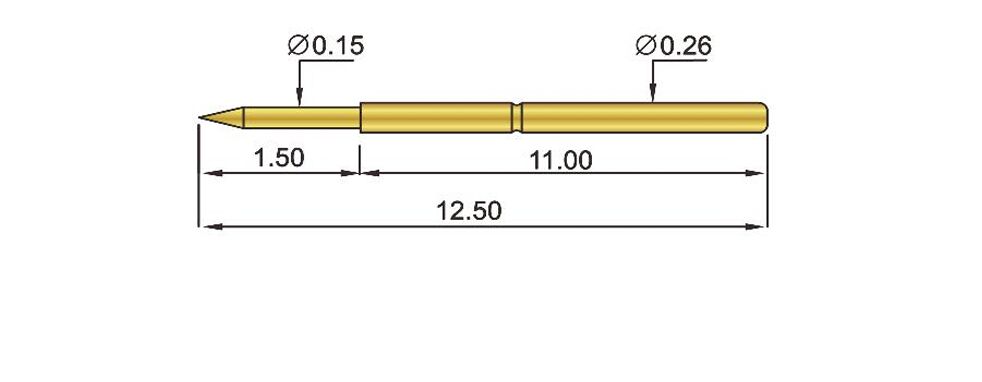

Production Specifications

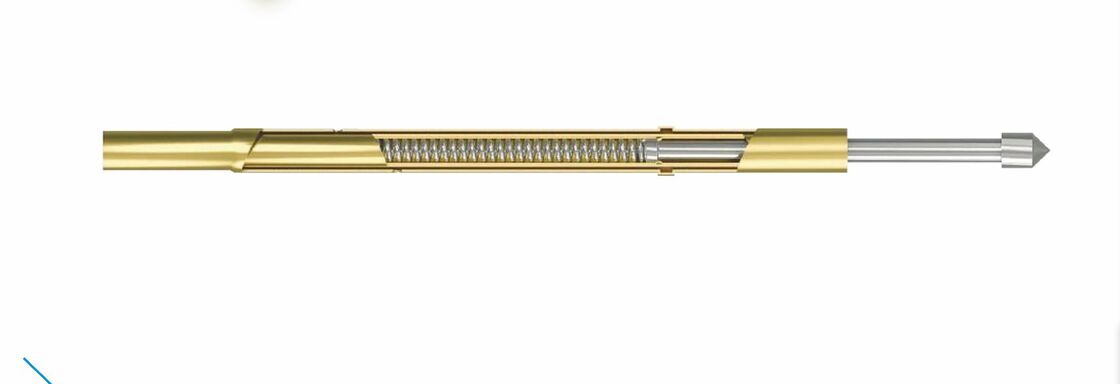

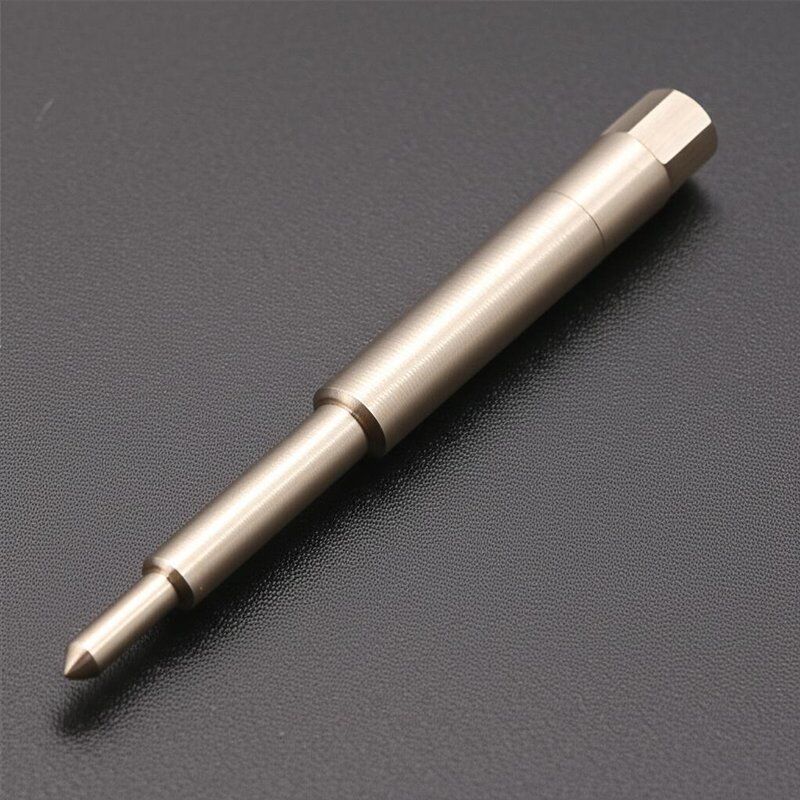

Product Images

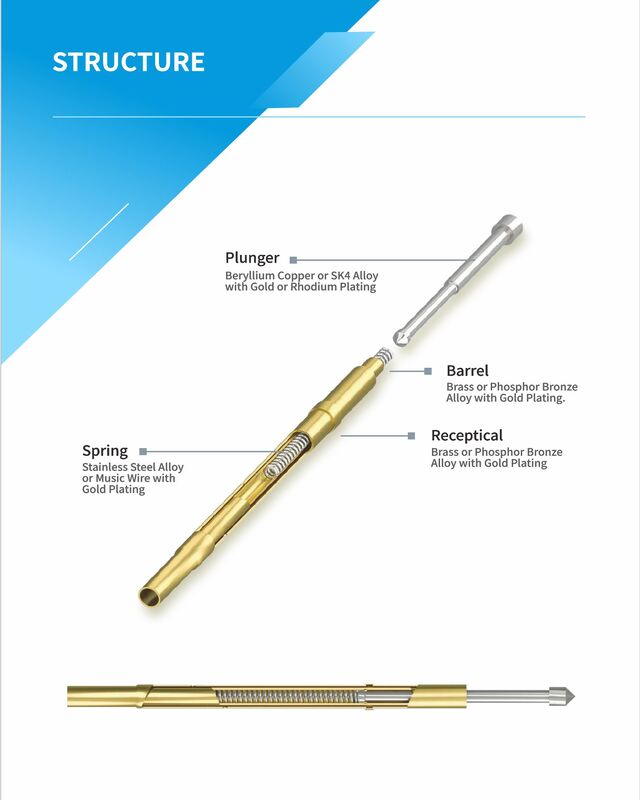

Detailed Component Illustration

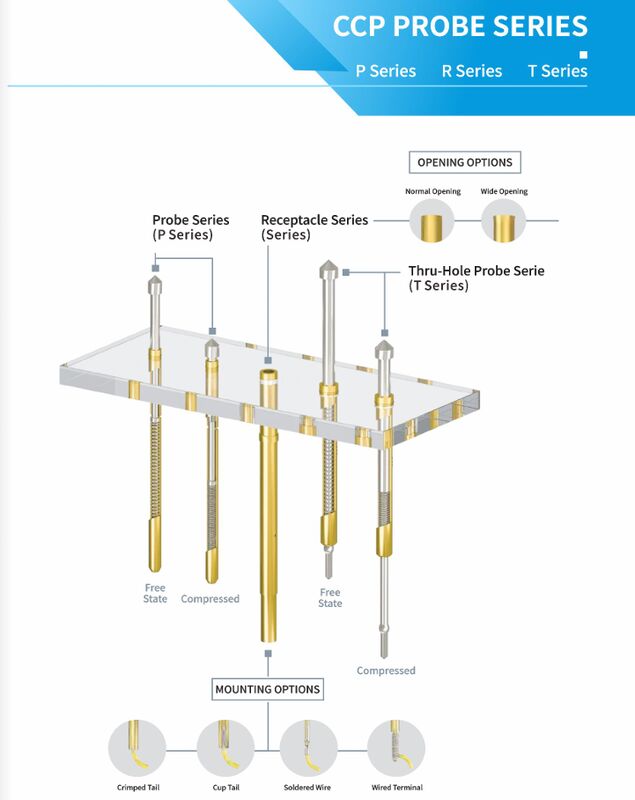

Comparison of different test probe tip types and configurations

Customization Options

At SICHUAN WINNER SPECIAL ELECTRONIC MATERIALS CO., LTD., we offer comprehensive customization for our brass barrel stainless steel spring test probes:

Custom diameters to match your specific requirements
Custom plating thicknesses for optimal conductivity and durability
Custom mechanical specifications tailored to your application

All products include material traceability documentation and certificate of analysis for quality assurance. Contact us to request samples or a quotation for your specific application requirements.

Manufacturing Process

Our probe manufacturing facility

Quality control inspection

Packaged probes ready for shipment
