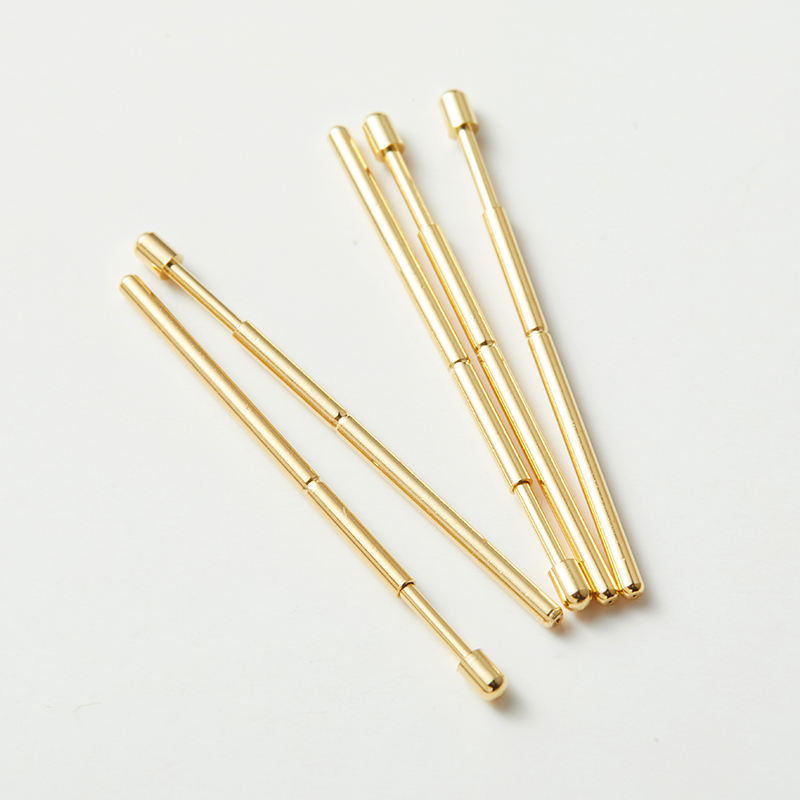

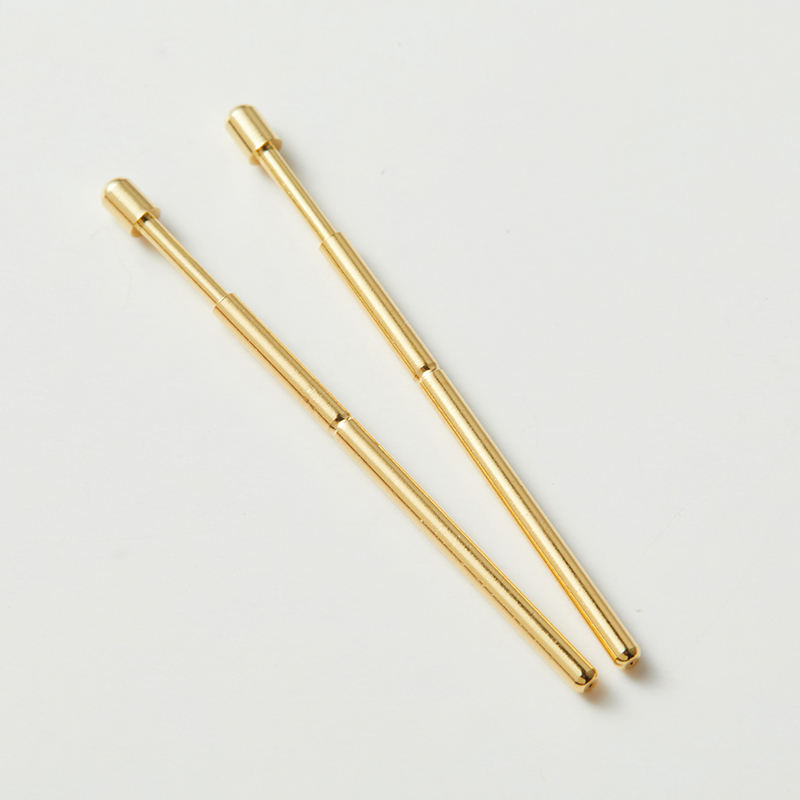

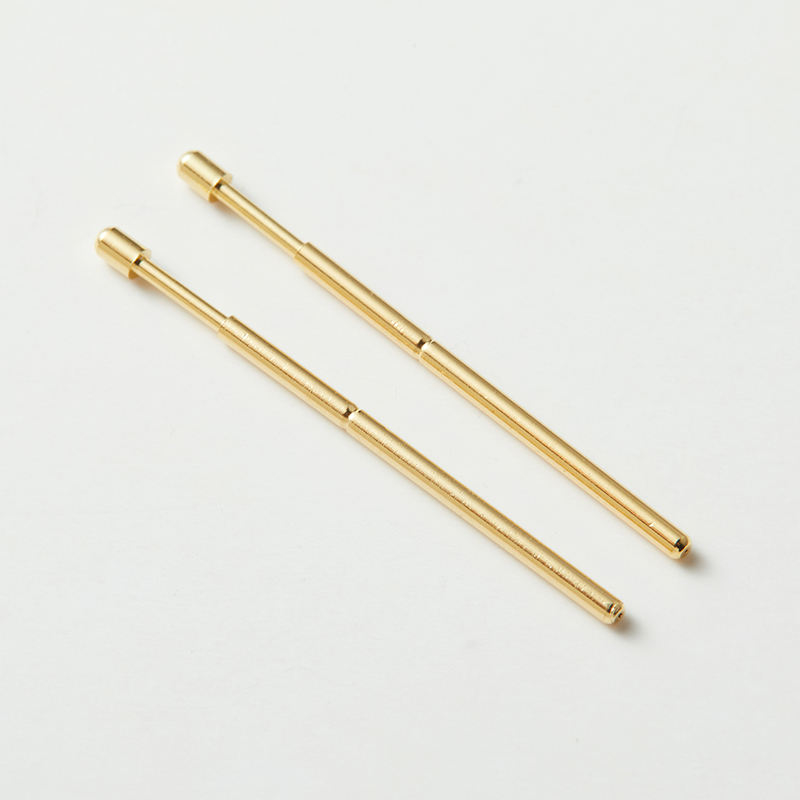

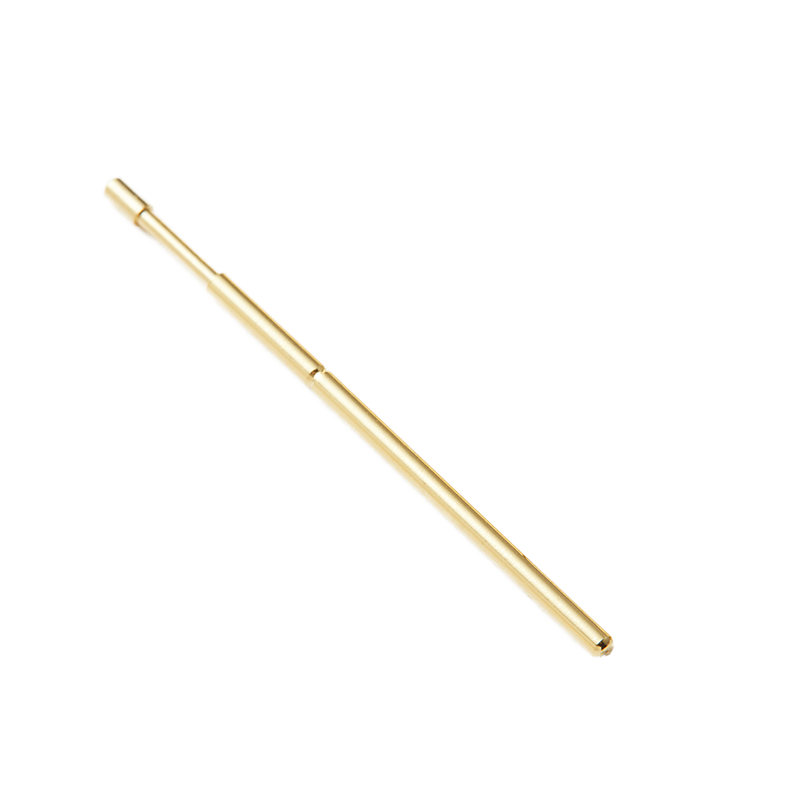

Name: P75-E2 Spring Test Probe with 1.3mm Conical Head and 1.02mm Tube Diameter for 3A PCB Testing
Brand: SICHUAN WINNER SPECIAL ELECTRONIC MATERIALS CO., LTD.
Price: 999 USD
Availability: InStock

집 > 상품 > 스프링 테스트 프로브 >

P75-E2 Spring Test Probe with 1.3mm Conical Head and 1.02mm Tube Diameter for 3A PCB Testing

1.3mm Diameter Spring Test Probe

1.02mm Tube Diameter Pogo Pin

3A Current PCB Testing Pin

원래 장소:

중국

브랜드 이름:

WINNER

인증:

ISO9100

문의하기

조회를 요청하다

P75-E2 Spring Test Probe with 1.3mm Conical Head and 1.02mm Tube Diameter for 3A PCB Testing

제품 상세정보

제품명:

표준 크기 테스트 프로브

플런저:

Becu

통:

놋쇠

봄:

스테인레스 스틸

유효성:

사용 가능한 맞춤형 크기

코팅:

금도금

MOQ:

100개

강조하다:

1.3mm Diameter Spring Test Probe

1.02mm Tube Diameter Pogo Pin

3A Current PCB Testing Pin

지불과 운송 용어

최소 주문 수량

1PC

가격

999

포장 세부 사항

중성 포장 또는 OEM 로고와 함께

배달 시간

5-8 영업일

지불 조건

L/C, 서부 동맹, T/T

공급 능력

달 당 100000의 목록

Spring Test Probe P156 H, 100Pcs Spring Loaded Test Pin, 2.36mm Brass Spring Probe with 9 Claws, Industrial Supplies for Testing and Replacement, Durable and Accurate Computer Mac

최고의 가격을 얻으십시오

Spring Test Probes, 100Pcs P125-Q High Accuracy Round Pogo Pins for PCB Board Testing Contact

최고의 가격을 얻으십시오

100 Pieces P75-E2 Cone Head Spring Test Probe with 16mm Length and 1.4mm Boring Size for PCB Testing

최고의 가격을 얻으십시오

P125-A Spring Test Probe Pogo Pin with 5A Current 50m Ohm Resistance and 33.35mm Length for PCB Testing

최고의 가격을 얻으십시오

문의하기

지금 접촉하세요

제품 설명

P75-E2 Spring Test Probe Pogo Pin Test Tools

E-type conical head probe designed for PCB testing applications. An excellent replacement option to extend the life of your test station.

Key Features

Precision conical head design: Head Diameter 1.3mm, Tube Diameter 1.02mm
Durable construction: Shank Diameter 0.74mm, Length 16.5mm
Optimal performance: Minimum Test Distance 1.91mm, Full Stroke 2.50mm
Reliable electrical characteristics: Spring Pressure 100g, Current 3A, Resistance 50m Ohm
Premium materials: Heat treated beryllium copper plunger with gold plated phosphor bronze barrel and gold plated stainless steel wire spring
Essential for PCB conductive testing to evaluate components on printed circuit assemblies
Ideal for testing through-hole components, gold fingers (edge connectors), and welding pads

Technical Specifications

Specification	Details
Type	P75-E2 Spring Test Probe
Material	Brass
Plating Layer	Gold Plated
Color	Gold
Package	PE Bag
Current resistance	50mΩ
MOQ	100PCS
Payment	T/T
Delivery time	5-10 days after receiving payment

Test Probe Selection Guide

Test probes are available from many manufacturers with similar constraints. When selecting a test probe receptacle, the tip choice is the most critical consideration.

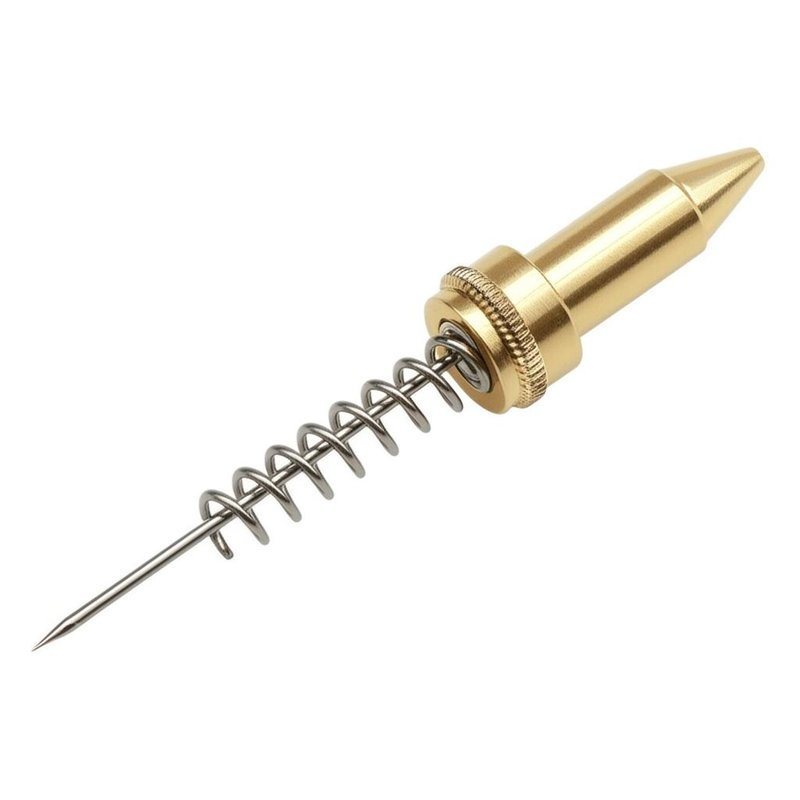

Detailed illustration of test probe components and construction

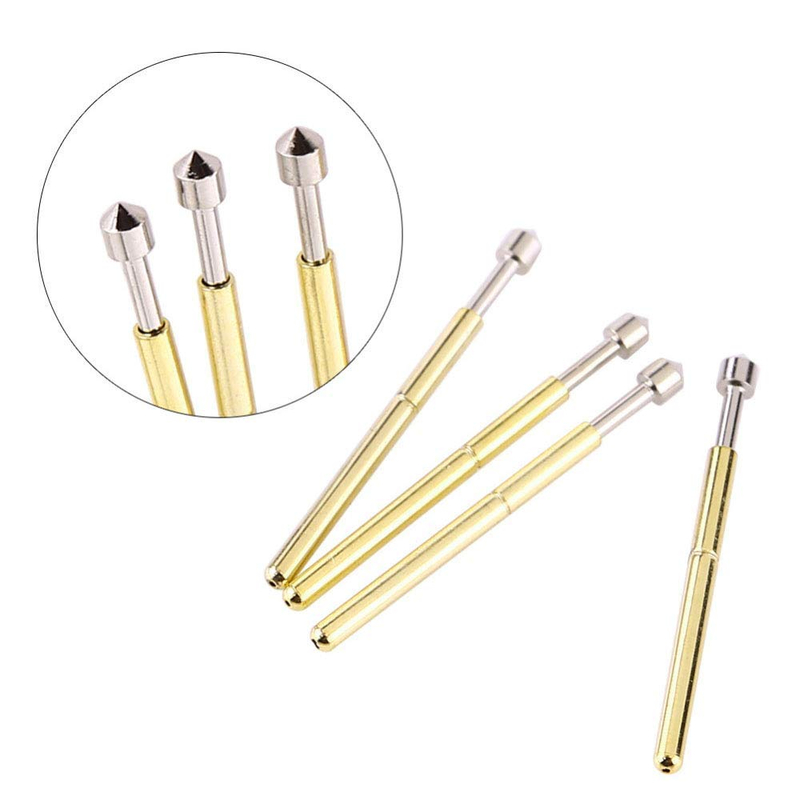

Various test probe tip types

Customization Options

At SICHUAN WINNER SPECIAL ELECTRONIC MATERIALS CO., LTD., we offer comprehensive customization:

Custom diameters to match your specific requirements
Custom plating thicknesses for optimal conductivity and durability
Custom mechanical specifications tailored to your application

All products include material traceability documentation and certificate of analysis for quality assurance.

Our probe manufacturing facility

Quality control inspection

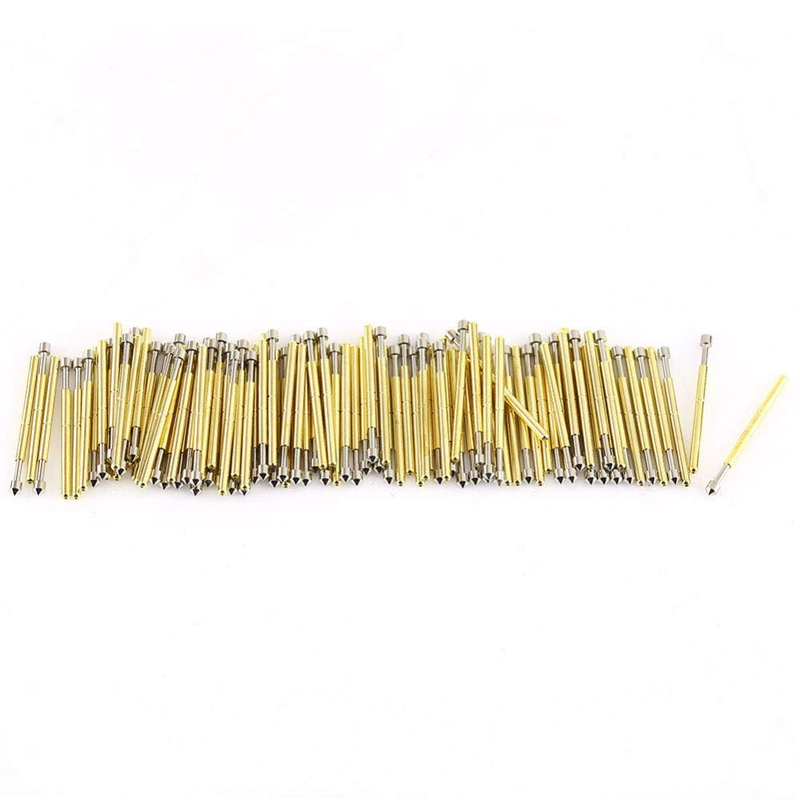

Packaged probes ready for shipment
