Name: Spring Test Probe with 24.5 mm Length and 1.5 mm Needle Diameter for 4 mm Full Stroke PCB Testing
Brand: SICHUAN WINNER SPECIAL ELECTRONIC MATERIALS CO., LTD.
Price: 999 USD
Availability: InStock

집 > 상품 > 스프링 테스트 프로브 >

Spring Test Probe with 24.5 mm Length and 1.5 mm Needle Diameter for 4 mm Full Stroke PCB Testing

24.5 mm Length Spring Test Probe

1.5 mm Needle Diameter Pogo Pin

4 mm Full Stroke PCB Test Probe

원래 장소:

중국

브랜드 이름:

WINNER

인증:

ISO9100

문의하기

조회를 요청하다

Spring Test Probe with 24.5 mm Length and 1.5 mm Needle Diameter for 4 mm Full Stroke PCB Testing

제품 상세정보

제품명:

표준 크기 테스트 프로브

플런저:

Becu

통:

놋쇠

봄:

스테인레스 스틸

유효성:

사용 가능한 맞춤형 크기

코팅:

금도금

MOQ:

100개

강조하다:

24.5 mm Length Spring Test Probe

1.5 mm Needle Diameter Pogo Pin

4 mm Full Stroke PCB Test Probe

지불과 운송 용어

최소 주문 수량

1PC

가격

999

포장 세부 사항

중성 포장 또는 OEM 로고와 함께

배달 시간

5-8 영업일

지불 조건

L/C, 서부 동맹, T/T

공급 능력

달 당 100000의 목록

Spring Test Probe P156 H, 100Pcs Spring Loaded Test Pin, 2.36mm Brass Spring Probe with 9 Claws, Industrial Supplies for Testing and Replacement, Durable and Accurate Computer Mac

최고의 가격을 얻으십시오

Spring Test Probes, 100Pcs P125-Q High Accuracy Round Pogo Pins for PCB Board Testing Contact

최고의 가격을 얻으십시오

100 Pieces P75-E2 Cone Head Spring Test Probe with 16mm Length and 1.4mm Boring Size for PCB Testing

최고의 가격을 얻으십시오

P125-A Spring Test Probe Pogo Pin with 5A Current 50m Ohm Resistance and 33.35mm Length for PCB Testing

최고의 가격을 얻으십시오

문의하기

지금 접촉하세요

제품 설명

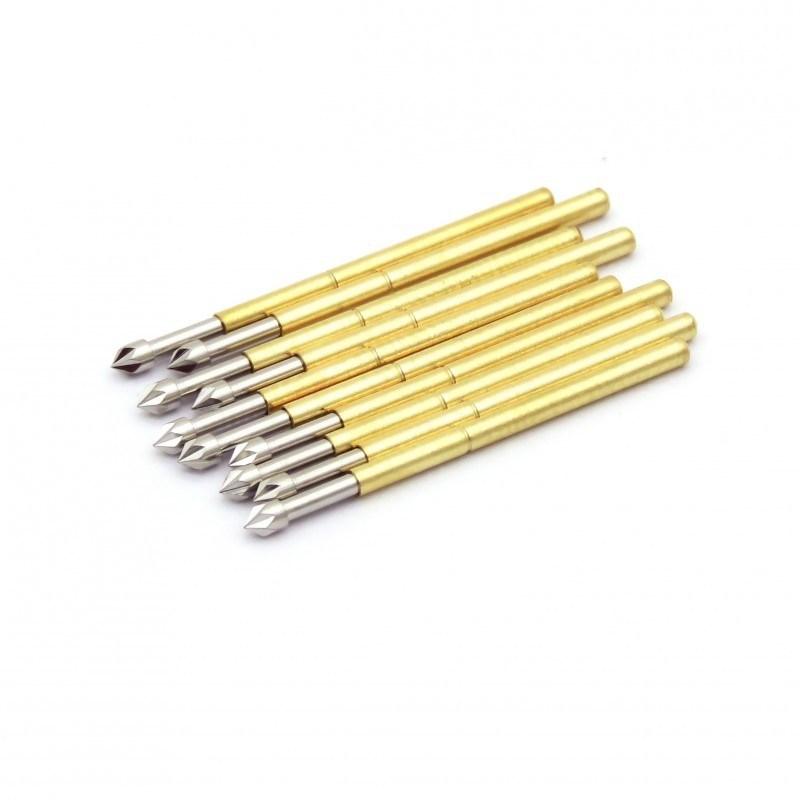

Spring-loaded Test Needle for Connecting and Testing Modules Without Soldering

Spring-loaded test needle for connecting and testing modules without soldering. The 24.5 mm long needle ensures a stable connection with test pads. Ideal for testing or programming modules without requiring goldpin connector soldering.

Product Specifications

Features

Model: P160-LM2
Full stroke: 4 mm
Current: 3 A
Resistance: 50 mΩ
Color: gold + silver
Needle diameter: 1.5 mm
Shank diameter: 1 mm
Needle length: 24.5 mm
Needle cover diameter: 1.36 mm
Drill size: 1.7 mm

Included

10 x pogo pins P160-LM2

Test Probe Selection Guide

Test probes are available from many manufacturers with similar constraints. When selecting a test probe receptacle, the tip choice is the most critical consideration.

Detailed illustration of test probe components and construction

Various test probe tip types

Customization Options

At SICHUAN WINNER SPECIAL ELECTRONIC MATERIALS CO., LTD., we offer comprehensive customization:

Custom diameters to match your specific requirements
Custom plating thicknesses for optimal conductivity and durability
Custom mechanical specifications tailored to your application

All products include material traceability documentation and certificate of analysis for quality assurance. Contact us to request samples or a quotation for your specific application requirements.

Our probe manufacturing facility

Quality control inspection

Packaged probes ready for shipment
